5760 MHz EME

The antenna for 5760 MHz EME is my 5.5 m dish with a f/D of 0.366.

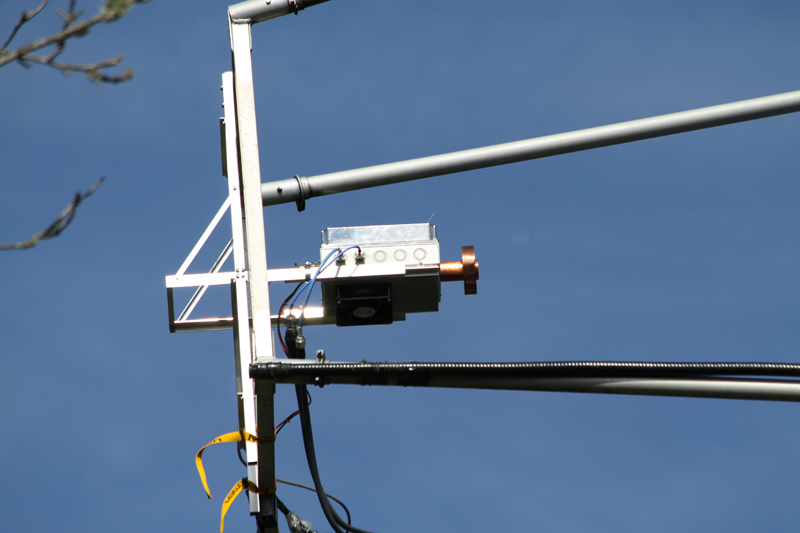

SM6FHZ 6cm RF-head         6cm RF-head


SM6FHZ 6 cm RF-head interior       Interior of present 6cm RF-head

Feed Rx-connector and protectio relay       Feed Rx-connector, LNA-input connector and protection relay in the present 6cm RF-head

SM6FHZ 6 cm dish and feed     5.5 m dish with 6cm RF-head

SM6FHZ 6 cm feed in the dish    6cm RF-head in the dish

I am using the SM6FHZ 5 step septum feed horn for 6 cm EME. Designed by SM6FHZ and built by SM6PGP.

SM6FHZ feed for 6 cm   SM6FHZ 5 step septum feed horn for 6 cm (Photo SM6PGP)




SM6FHZ 6 cm transverter    6cm transverter and power supply


Equipment on 6 cm EME:
Antenna: 5.5 m solid dish, 0.366 f/D (SM6FHZ EME dish) giving 0.66 deg half power beam-width

The 6 cm RF-head is situated at the focal point of the dish and contains:
Feed: SM6FHZ 5 step septum in a circular WG and using a Kumar choke (SM6FHZ design and built by SM6PGP)
PA: 2 x CGH40035 GaN transistor amp giving about 100W at the feed driven by one CGH 40006, both running on +48V drain voltage (SM6PGP design and built by me)
LNA: NE3511S02 + HMC717 as second stage (SM6PGP design), NF measured to be <0.8 dB including the protection relay.

The 6 cm equipment situated indoors contains:
Transverter: SM6FHZ 6 cm transverter in the shack giving 2 W to 16 m of 1/2" Heliax cable to the feed point (400 mW available at the feed point)
Auto moon tracking with a OE5JFL controller.
Main rig is ICOM IC-756Pro3.
SDR is an AFEDRI SDR Net hooked up on the 28 MHz IF-line by a home made 10 dB branchline coupler.

Sun noise on April 10 2016 (flux = 105.5) 18.7 dB and more than 2.0 dB of moon noise (2016-04-09, moon distance ~356000 km and new Moon). Cold sky to ground is about 6.0 dB.

Recording of my echoes on October 10th 2014: Wav-file (size 29 MB) from 50 kHz frequency band width on the 28 MHz IF of my transverter. Can be played in the SDR-Radio SDR S/W. The recording covers a piece of the band (50 kHz) and you will find my echoes on 28 096.5 kHz in the recording (transmitting 5760.090 MHz). The recording was made using my AFEDRI SDR Net and the SDR-Radio S/W. The moon distance at the time was ~374 000 km that equals about -0.8 dB on the signal with respect to Perigee. Libration at 5760 MHz at the time was about 10 Hz, very low for being on 5760 MHz. The moon was at about 22 degrees of elevation.


Measurements on 6 cm EME:

SM6FHZ Cold sky to ground noise
 6cm Cold sky to ground noise on April 10th, 2016


SM6FHZ Moon noise 2016-04-09

    6cm Moon noise on April 19th, 2016

SM6FHZ solar noise 2016-04-10

    6cm Sun noise on April 10th, 2016

Measuring Solar noise shows that the antenna pattern is quite clean. The first side lobe is about -18 dB (close to the predicted value from EM-simulations with this feed). The antenna beam width is about 0.66 deg. The antenna is on the Sun to the left and is moved off the Sun to the right.


QSO's on 6 cm EME:

 Recording from the British source TX-Factor of the SSB QSO with GB6GHY with Bob, G0FGX, at the mike, on August 25th, 2017:

http://www.txfactor.co.uk/episode-18.html

as seen from my QSO partners view at the Goonhilly premesis. The QSO takes place 16 minutes into the recording.


SM6FHZ 5760 MHz EME initials list (2021-06-19), all worked from JO57XJ:

Initial # Call Date UTC Time UTC Square Square # Field # EME DXCC # State # Mode Distance QSL Remarks
1 K5GW 2012-10-07 08:56 EM12QX 1 1  EM 1 1  Tx CW 7988   Na
2 SV1BTR 2012-10-07 09:14 KM18NO 2 2  KM 2   CW 2242 OK Eu
3 OK1KIR 2012-11-11 09:48 JN79DW 3 3  JN 3   CW 790 OK
4 G3LTF 2012-11-11 09:52 IO91GG 4 4  IO 4   CW 1104 OK
5 PA0BAT 2012-11-11 09:57 JO31FX 5 5  JO 5   CW 699 OK
6 SV3AAF 2012-11-11 10:08 KM17KO 6       CW 2342
7 CT1DMK 2012-11-11 10:18 IN50RO 7 6  IN 6   CW 2375 OK
8 G4CCH 2013-06-08 14:08 IO93QL 8       CW 910 OK
9 VK3NX 2013-06-09 06:09 QF21CT 9 7  QF 7   CW 15964 OK Oc
10 PA3DZL 2013-06-09 06:40 JO21HM 10       CW 807 OK
11 W5LUA 2013-06-09 14:08 EM13QC 11       CW 7976
12 SP6GWN 2013-06-15 12:27 JO80GL 12   8   CW 826 OK First SP-SM 6 cm EME QSO
13 G4NNS 2013-06-15 17:00 IO91FF         CW 1111 OK
14 LX1DB 2013-08-02 11:38 JN39CO 13   9   CW 946
15 ES5PC 2013-08-03 10:09 KO38HJ 14 8  KO 10   CW 875   First ES-SM 6 cm EME QSO
16 DL7YC 2013-08-04 12:16 JO62PK 15   11   CW 558 OK
17 VE4MA 2013-08-04 12:50 EN19LU 16 9  EN 12   CW 6463 OK First VE-SM 6 cm QSO
18 F2CT 2013-09-28 07:59 IN88FS 17   13   CW 1408 OK
19 IK2RTI 2013-09-28 09:04 JN55AD 18   14   CW 1369
20 PY1KK 2013-12-30 10:03 GG76QS 19 10  GG 15   CW 10390 OK First PY-SM 6 cm QSO, Sa
21 OK1CA 2014-04-05 10:18 JO70GM 20       CW 783 OK
22 JA6CZD 2014-04-05 10:55 PM53FM 21 11 PM 16   CW 8412 OK As
23 JA1WQF 2014-04-05 12:24 QM05AV 22 12 QM     CW 8585 OK
24 SM6CKU 2014-04-05 12:58 JO67CK 23   17   CW 15 OK
25 OH2DG 2014-04-05 14:18 KP30CK 24 13 KP 18   CW 885
26 LA8LF 2014-04-05 14:28 JO59BR 25   19   CW 280   First LA-SM 6 cm EME QSO
27 SQ6OPG 2014-04-05 16:46 JO80JK         CW 836 OK
28 G3WDG 2014-04-06 11:39 IO92RG 26       CW 982
29 RK3WWF 2014-04-27 09:28 KO72QI 27   20   CW 1594 OK First UA-SM 6 cm QSO
30 SM6PGP 2014-04-27 11:17 JO67BK         CW 10 OK
31 S59DCD 2014-07-18 07:50 JN76OK 28   21   CW 1239 OK First S5-SM 6 cm QSO
32 K2UYH 2014-07-19 07:48 FN20OF 29 14 FN   2 Nj CW 6222
33 JA8ERE 2014-08-15 23:19 QN02QX 30 15 QN     CW 7928 OK
34 IZ2DJP 2014-08-16 06:14 JN55FO         CW 1315
35 JA4BLC 2014-08-24 06:41 PM65NM 31       CW 8336 OK
36 IK3COJ 2014-08-24 08:35 JN65BN 32       CW 1316 OK
37 UN6PD 2014-09-06 18:10 MN69JN 33 16 MN 22   CW 3991 OK First UN-SM 6 cm QSO
38 F1PYR 2014-09-06 19:34 JN19DA 34       CW 1131
39 VE6TA 2014-09-14 08:20 DO33GS 35 17 DO     CW 6731 OK
40 OH0/DL1YMK 2014-10-10 20:39 KP00DC 36   23   CW 568
41 WA6PY 2014-10-11 05:42 DM13LA 37 18 DM   3 Ca CW 8909 OK
42 UA3PTW 2014-10-12 05:18 KO93BS 38       CW 1687
43 S57NML 2015-06-13 08:16 JN76OD         CW 1271 OK
44 SM4DHN 2015-06-14 07:30 JP60VD 39 19 JP     CW 364
45 ON5RR 2015-06-14 10:59 JO20AR 40   24   CW 903
46 HB9SV 2015-07-18 08:48 JN45LV 41   25   CW 1295 OK First HB-SM 6 cm QSO
47 PI9CAM 2015-07-18 10:12 JO32ET 42       CW 621
48 PA7JB 2015-07-18 16:42 JO22MD 43       CW 733
49 HB9Q 2015-09-05 08:18 JN47CG 44       CW 1154 OK
50 UR7DWW 2016-04-08 14:06 KN18EO 45 20 KN 26   CW 1199   First UR-SM 6 cm QSO
51 OZ1LPR 2016-04-08 14:12 JO44UW 46   27   CW 307
52 DF3RU 2016-04-09 08:35 JN59UL 47       CW 881 OK
53 JA8IAD 2016-04-09 08:45 QN03QK 48       CW 7882
54 JF3HUC 2016-04-10 08:22 PM74UX 49       CW 8500 OK
55 SP7JSG 2016-04-10 15:51 KO01BW 50       CW 803
56 KL6M 2016-07-02 02:46 BP51DC 51 21 BP 28 4 Al CW 6766 OK First KL - SM 6 cm QSO
57 UA4HTS 2015-07-02 03:29 LO43MO 52 22 LO     CW 2350
58 OH1LRY 2016-07-02 11:44 KP10AE 53       CW 659
59 WA9FWD 2016-07-02 12:01 EN53XB 54     5 Wi CW 6640
60 UA3TCF 2016-07-26 03:17 LO26IU 55       CW 1965 OK
61 UA4AAV 2016-07-26 05:12 LO21FC 56       CW 2206
62 PY2BS 2017-05-27 13:35 GG66PJ 57       CW 10498 OK
63 GB6GHY 2017-08-25 12:07 IO70JB 58       CW 1390 OK
64 DB6NT 2019-07-19 22:52 JO50VJ 59       CW 779
65 UR5LX 2019-07-19 23:45 KO70WK 60       CW 1739
66 VK6DSL/p 2019-07-21 00:22 OF78WE 61 23 OF     SSB 13735
67 VE6BGT 2019-09-21 07:22 DO32FK 62       CW 6862 OK
68 F5IGK 2019-09-22 08:01 JN09NK 63       CW 1138
69 SA6BUN 2021-06-12 17:44 JO78CP 64       CW 192
70 OK1DFC 2021-06-13 09:00 JN79GW         CW 847
71 9A5AA 2021-06-13 09:43 JN75XT 65   29   CW 1317
72 IK0HWJ 2021-06-15 13:25 JN61HM 66       CW 1768
73 DL4DTU 2021-06-18 14:24 JO60TS 67       CW 745
